Product Details:
|
| Product Name: | 2/3/5/7/9 Corrugated Line | Web Size: | 1400-2800mm |
|---|---|---|---|
| Feature: | Easy To Operate And Maintain | Speed: | 100-330m/Min |
| Boiler: | 2, 3, 4 Mt/H, According To The Line Speed | Keywords: | Corrugated Cardboard Making Machine |
| Highlight: | 2800mm Carton Box Production Line,1400mm Carton Box Production Line,2800mm Carton Production Line |
||

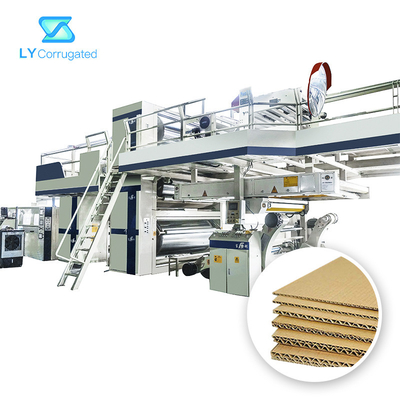

1400-2800mm Corrugated Cardboard Machinery 2/3/5/7/9 Corrugated Cardboard Carton Production Line
Product Parameter:
|
Effective width
|
1400-2800mm
|
Design produce speed
|
300m/min
|
|
Three layer work speed
|
180-220m/min
|
Five layer work speed
|
300m/min
|
|
Longitudinal separation accuracy
|
±1mm
|
Cross-cutting precision
|
±1mm
|
A Complete Corrugating Board Production Line Includes The Following Machines:
Mill Roll Stand, Pre-Heater, Splicer, Single Facer, Over Bridge, Heavy Duty Drive, And Glue Machine, Double Facer, Slitter Scorer, Cutoff, Stacker, And Ect.
Raw Paper Roll Is Fed To The Roll Stand, After Heated And Moisture Adjusted By The Per-Heater, Raw Paper will Go To The Single Facer, Corrugated By lt, And Gluing Together With Another Raw Paper To Become Single Faced Corrugating Paper, Then Conveyed Through The Over Bridge, Re-Heated By Multi-Pre-Heater, After Glued By Glue Machine, Jointed By The Double Facer, Continuous Corrugating Board Comes Out.
After Slitting And Scorering By Slitter Scorer And Transverse Cutting By Cutoff, Corrugating
Board With Different Sizes Are Produced. At Last, These Different Sizes Corrugating
Board Will Be Stacked, Calculated And Then Send Out By The Stacker.
Heating Way: Steam Heating
