Product Details:
|
| Product Name: | Pre-conditioner | Effective Width: | 1400-2500mm |
|---|---|---|---|
| Weight: | 2.2-3.6 T | External Dimensions L×W×H (mm): | 3550×1100(900)×1360 |
| Total Power (kW) （Fixed Cylinder）: | 0.37-0.75 | Total Power (kW) （Constant-speed Rotary Cylinder）: | 2.57-2.95 |
| Highlight: | Preheater corrugated cardboard box making machine,corrugated cardboard box making machine,2.57KW corrugated boxes manufacturing machines |
||
High Speed Corrugated Cardboard Production Line Paper Preheater Machine
| Paper Width (mm) |
External Dimensions L×W×H (mm) |
Weight (T) | Total Power (kW) (Fixed cylinder) |
Total Power (kW) (Constant-speed rotary cylinder) |
| 1400 | 2430×1100(900)×1360 | 2.2 | 0.37 | 2.57 |
| 1600 | 2630×1100(900)×1360 | 2.4 | 0.37 | 2.57 |
| 1800 | 2830×1100(900)×1360 | 2.6 | 0.75 | 2.95 |
| 2000 | 3030×1100(900)×1360 | 2.8 | 0.75 | 2.95 |
| 2200 | 3240×1100(900)×1360 | 3.2 | 0.75 | 2.95 |
| 2300 | 3340×1100(900)×1360 | 3.4 | 0.75 | 2.95 |
| 2500 | 3550×1100(900)×1360 | 3.6 | 0.75 | 2.95 |

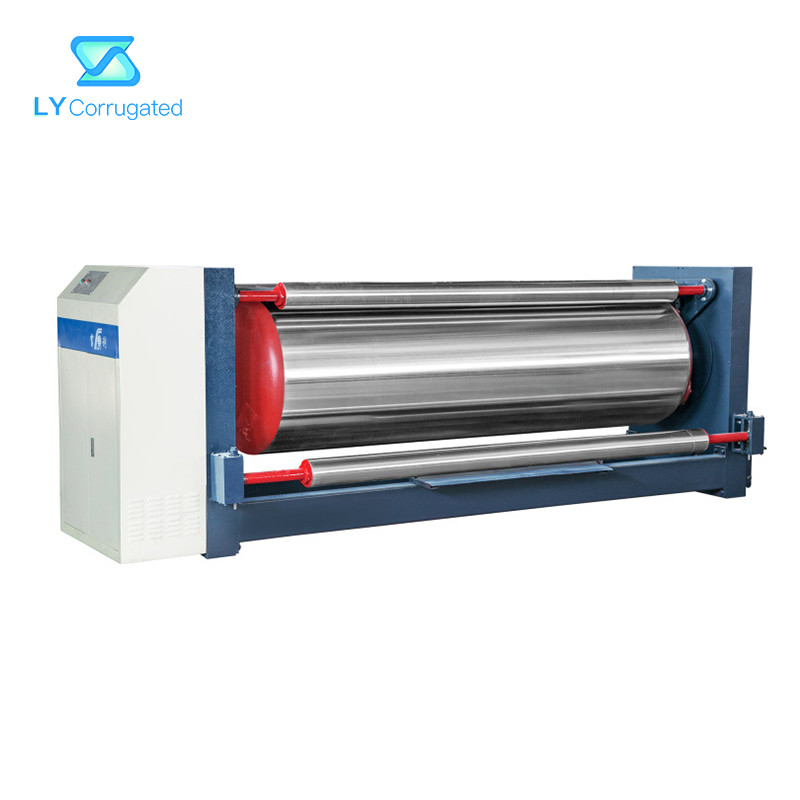

Paper Preheater Machine
The diameter of the pre-heating cylinder: φ1,028 mm/φ828 mm; the pre-heating cylinder meets the China national standard for Class 1 pressure vessels; With the pressure vessels test certificate.
