Product Details:
|
| DRIVING POWER: | 380V,50HZ,20A | TIME FOR RESPOND: | ABOUT 1 SECOND |
|---|---|---|---|
| PAPER GRAMMAGE: | 50g/㎡~450g/㎡. | WED SIZE: | 1800mm/ Customized |
| DESIGNED SPEED: | 300M/MIN (FLUTE LINDER), 350M/MIN (TOP LINER) | TYPE OF SPLICING: | BY LAP SPLICING. |
| Highlight: | 300m / Min Corrugator Splicer,Tension Control Corrugator Splicer,Low Grammage Paper Splicing Machine |
||

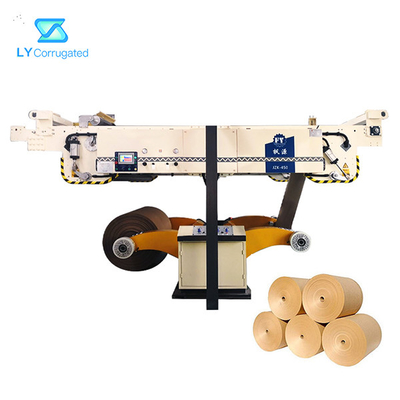

Tension Control Low Grammage Paper Splicing Machine 300m/min Corrugator Splicer
SPLICING SPEED STANDARD
|
PAPER GRAMMAGE(G/㎡) |
TOP LINER SPEED (M/MIN) |
FLUTE LINER SPEED (M/MIN) |
| 70~90 | 250 | 200 |
| 90~110 | 280 | 220 |
| 110~130 | 300 | 250 |
| >130 | 300 | 250 |
|
NOTE: ABOVE PAPER MENTIONED AS PER PAPER STANDARD FROM LEE&MAN, NINE DRAGON. SUCESSFUL SPLICING RATIO CAN REACH 95% WHEN SPLICING SPEED IS REDUCE ABOUT 10%. |
||
MAIN FEATURES:
1,THE MACHINE FRAME IS MADE OF HIGH QUALITY CARBONIZED STEEL. WITH OPTIMAL DESIGN, GOOD APPREARANCE AND STABLE STRUCTURE.
2, ADOPTING HIGH PRECISION FULLY TENSION CONTROL BY SERVO MOTOR.
3, GOOD SPLICING PERFORMANCE FOR LOW PAPER GRAMMAGE.
4,SIMPLE PREPARATION WORK BEFORE SPLICING. QUICK AND CONVENIENT.
5,EQUIPPED WITH HMI. DIAGNOSIS AND MAINTAINANCE CAN BE CONTROLLED BY HMI.
6, IT CAN MORNITOR AND CONTROL ON LINER PAPER LENGTH, WEIGHT, DIMENSION, TENSION, PAPER REEL DIAMETER AND CURRENT WORKING SPEED.
7,PAPER REMAINS CAN BE SPLICED, AUTOMATIC SPLICING TO ADVOICE MACHINE STOP.
