Product Details:
|
| Product: | Corrugated Splicer | Designed Speed: | 300m/Min |
|---|---|---|---|
| Splicing Method: | Lap Joint | Max Size: | 1800- 2500mm Or Customized |
| Application: | Corrugated Paperboard Line | Paper Changing Time: | About 1 Second |
| Highlight: | Single Head corrugated paperboard production line,300m/Min corrugated paperboard production line,Single Head corrugated box manufacturing plant |
||

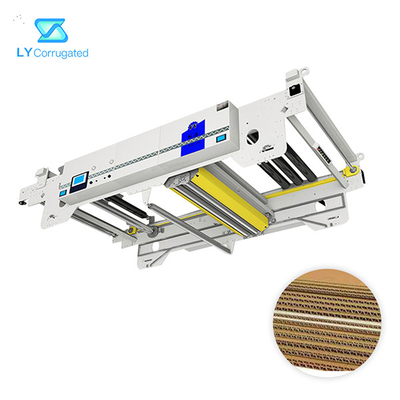

Tension Control Corrugator Splicer For Corrugated Paperboard Production Line
Configuration:
Splicing type: overlapping.
Width: 1800,2200,2500mm.
Base paper weight 50g~350g/m2
Time for completion of paper splicing reaction: about 1 second.
Air source: dry and clean air source with a minimum of 0.6MPa.
Power source: 3B0V, 50Hz, 20A.
Control power supply: DC24v.
Paper Brake: Servo Mot
Application:
1800mm Corrugated Line, 2200mm Corrugated Line, 2500mm Corrugated Line, Roll to Sheet Cutter, Laminating Machine, High Speed Sheeter, etc
Production Parameter:
| Model |
Single Head Lap Open Loop System Fly300-I |
| Specification | 1.8-2.5 Meter |
|
Design Speed |
300m/min |
| Working Speed | 200m/min |
