Product Details:
|
| Product: | Corrugated Board Production Line | Maximum Mechanical Speed: | 200 M/Min |
|---|---|---|---|
| Max Web Size: | 1800MM | Heating Way: | Steam Heating |
| Required Power: | About 255 Kw | Economic Speed: | 140-180 M/Min(3-Layer)； 120-150 M/Min(5-Layer) |
| Highlight: | Steam Heating Corrugated Board Processing Line,200m / Min Corrugated Board Processing Line |
||

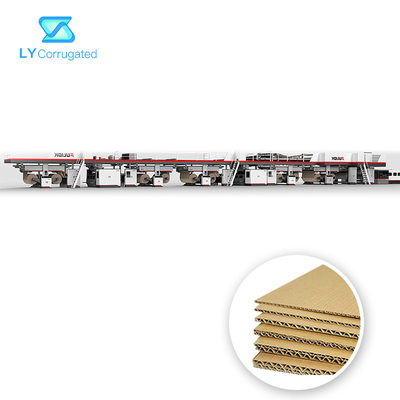

Long Service Life 5ply 200m/Min Corrugated Board Processing Line
Major Parameter:
| Max. Effective Paper Width | 1800mm |
| Heating Way | Steam Heating |
| Required Power | About 255kw |
| Max. Speed | 200 M/Min |
| Economic Speed | 140-180 M/Min(3-Layer)； 120-150 M/Min(5-Layer) |
| Test Run Paper Standard | When Paper Width Is 1800mm, Test Run Speed 150m/Min |
| Boiler | 3 Mt/H. |
| Steam Pressure | 10 Kg/Cm2 |
A Complete Corrugating Board Production Line Includes The Following Machines:
Mill Roll Stand, Pre-Heater, Splicer, Single Facer, Over Bridge, Heavy Duty Drive, And Glue Machine, Double Facer, Slitter Scorer, Cutoff, Stacker, And Ect.
Cardboard Producting Process:
Raw Paper Roll Is Fed To The Roll Stand, After Heated And Moisture Adjusted By The Per-Heater, Raw Paper will Go To The Single Facer, Corrugated By lt, And Gluing Together With Another Raw Paper To Become Single Faced Corrugating Paper, Then Conveyed Through The Over Bridge, Re-Heated By Multi-Pre-Heater, After Glued By Glue Machine, Jointed By The Double Facer, Continuous Corrugating Board Comes Out.
After Slitting And Scorering By Slitter Scorer And Transverse Cutting By Cutoff, Corrugating Board With Different Sizes Are Produced. At Last, These Different Sizes Corrugating Board Will Be Stacked, Calculated And Then Send Out By The Stacker.
