Product Details:
|
| Applicable Industrie: | : Corrugated Cardboard Production Line | After Warranty Servi: | Video Technical Support, Online Support |
|---|---|---|---|
| Marketing Type: | Hot Product | Core Components: | PLC, Motor, Other |
| Power: | 30-39kw | Voltage: | 380V,Customizable |
| Highlight: | PLC Corrugated Cardboard Machine,Conveyor Corrugated Cardboard Machine,cardboard hanger stacker Conveyor |
||

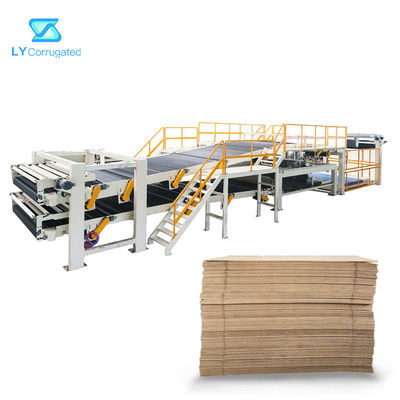

High Speed Corrugated Sheet Cardboard Conveyor Stacker Machine
|
Paper Width(mm)
|
External Dimensions (mm) L*W*H
|
Weight(T)
|
Total Power of Motor(kW)
|
|
1400
|
18500*3800*3500
|
9
|
30
|
|
1600
|
18500*4000*3500
|
10
|
30
|
|
1800
|
18500*4200*3500
|
11
|
35
|
|
2000
|
18500*4400*3500
|
12
|
35
|
|
2200
|
18500*4600*3500
|
13
|
39
|
|
2300
|
18500*4700*3500
|
14
|
39
|
Auto Stacker
1. The feed-out rollers are driven by a frequency converter controlled frequency conversion motor, so the acceleration and
deceleration are stable, the cardboard output is smooth, and it is not easy to make the cardboard turnover.
2. The lifting platform is driven by a frequency converter controlled brake motor and gravity counterweights are installed, so the acceleration and deceleration are stable and forceful and the speed changeover is reasonable and effective; thus, the cardboard stacking is smoother, the folded marks on cardboard are avoided and the life of the machine is extended.
3. The feed-out rollers are arranged closely and are lifted together with the lifting platform to reduce waste paper sheets.
4. The sun gear for paper output is pneumatically controlled and the air circuit is specially designed, so the paper output is
stable and tidy.
5. The ascending arc of the conveyance platform is reasonable, so partial lifting, etc. of the cardboard will not occur during
conveyance.
