Product Details:
|
| Product: | Corrugated Splicer | Designed Speed: | 300m/Min |
|---|---|---|---|
| Working Speed: | 250m/min | Splicing Type: | Overlapping |
| Web Size: | 1800mm | Application: | Corrugator |
| Highlight: | 300m/Min corrugated cardboard production line,Servo Motor corrugated cardboard production line,TUV cardboard making machine |
||

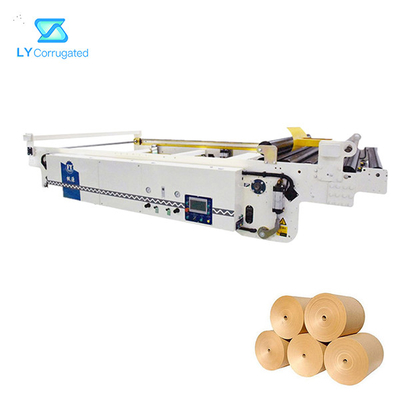

Servo Motor Application Paper Roll Splicing Machine For Corrugator Plant
Configuration:
Splicing type: overlapping.
Web Size: 1800mm.
Base paper weight: 50g~350g/m2
Paper changing reaction time: about 1 second.
Air source: dry and clean air source with a minimum of 0.6MPa.
Paper Brake: Servo Motor
Character of lycorrugated splicer
1, Easy to match the present corrugated line
2, With touch screen to help to diagnose the problem and control for maintainance. Remote communication can be processed. Friendy operation panel. Quick response from ontrol panel.
3, Monitoring the length, weight, tension, diameter of the paper reel and current machine working speed.
4, Setting minimum diameter of paper reel when auto splicing is taken action.
5, Easy operation, fast for preparing paper.
SPLICING SPEED (TRIAL WITH B/C FLUTE)
| LINER GSM | FOR TOP LINER(M/MIN) | FOR FLUTING LINER(M/MIN) |
| 70~90 | 200 | 150 |
| 90~110 | 230 | 180 |
| 110~130 | 250 | 200 |
| >130 | 300 | 250 |
