Product Details:
|
| Power: | 2.35kw | Specification: | SKA2060/2061/2070/2071 |
|---|---|---|---|
| Rated Flow Rate: | 79.8 | Inlet Size: | 40 |
| Ultimate Vacuum: | 33Mpa | Connection: | Threaded Connection |
| Highlight: | 2BV Water Ring Pump,2880Rpm Water Ring Pump,2BV Vacuum Ring Pump |
||

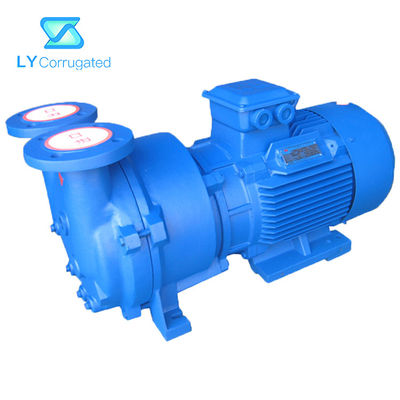

2BV 2880Rpm Electric Water Ring Vacuum Pump Corrugated Machine Spare Parts
Product Parameter:
| Model |
Vacuum Pressure Mbar(Pa) |
Air Flow Rate M3/min |
Capacity KW |
Rotating Speed Rpm |
Water Consumption L/min |
Noise dB(A) | Weight Kg |
| 2060 | 33(3300) | 0.45 | 0.83 | 2880 | ~2 | 62 | 20 |
| 2061 | 33(3300) | 0.87 | 1.45 | 2880 | ~2 | 65 | 22 |
| 2070 | 33(3300) | 1.33 | 2.35 | 2880 | ~2.5 | 66 | 31 |
| 2071 | 33(3300) | 1.83 | 3.85 | 2880 | ~4.2 | 72 | 42 |
Use and maintenance:
1, 2BV type water ring vacuum pump In order to make the wear impeller, pump body or stuck impeller not easy to wear, with gas and working fluid into the pump cavity dust particles, can be washed away through the 2BV type water ring vacuum pump bottom flushing port.
2. If hard water is used as a working liquid, it must be softened or the pump must be cleaned with a solution during the cycle.
3, 2BV type water ring vacuum pump motor often work bearings than the surrounding temperature of 15 °C ~ 20 °C, not allowed to pass 55 °C ~ 60 °C, normal work of the bearing should be oiled 1-2 times a year, at least once a year to clean the bearing, and replace the lubricating oil.
4, 2BV type water ring vacuum pump using the mechanical seal, leakage phenomenon, should check whether the mechanical seal of the dynamic, static ring has been damaged, or the sealing ring has been aging, such as the above situation, need to replace the accessories.
