Product Details:
|
| Suitable For: | 200g-500g Cardboard | Type: | Pneumatic |
|---|---|---|---|
| Max. Speed: | 4500RPM | Intake Air Pressure: | 0.8KPA |
| Air Pump Parameters: | 3000W | Color: | Silver |
| Highlight: | 4500 RPM Carton Waste Stripping Machine,0.8KPA Carton Waste Stripping Machine,4500 RPM Waste Stripper Machine |
||

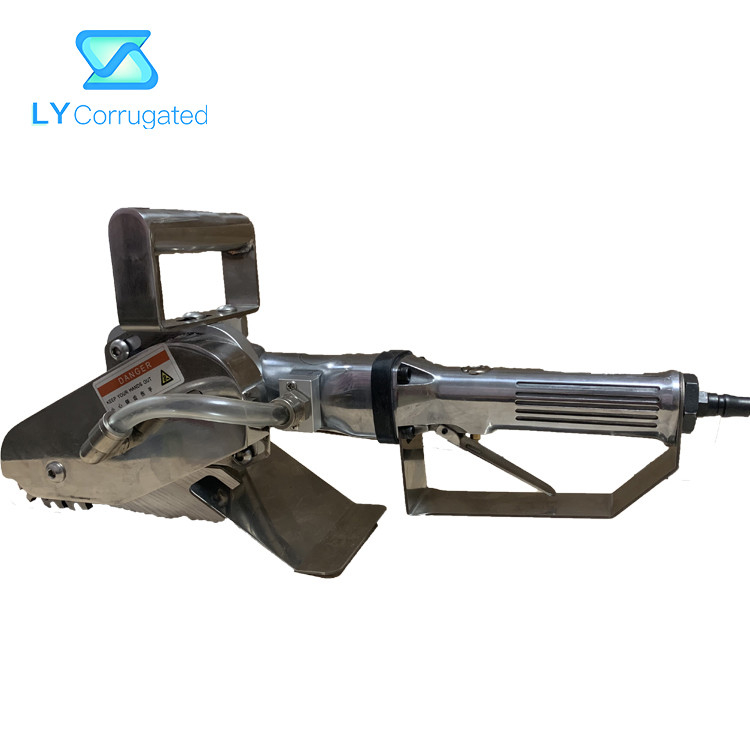

Manual Portable Pneumatic Corrugated Paperboard Waste Stripper For Carton Box
Product Parameter
| Model | Upgraded Waste Stripper |
| Optional chain | Large teeth/middle teeth/single teeth(If there are no special requirements, the chain is usually sent in middle teeth) |
| Product speed | 4500r/min |
| Intake air pressure | 0.8KPA |
| Air pump parameters | 3000W |
| Product color | Silver |
| Product Packaging | Double-layer carton |
Operation steps:
1. One hand grasps the arched handle of the upper part of the machine to ensure that the machine does not swing loosely, and the other hand gently holds the pneumatic motor.
2. Fingers press the motor elastic switch, the motor begins to rotate, the chain begins to move, the greater the pressure, the faster the speed, the requirements of pressing to the end, until the speed stabilizes, you can prepare to start the waste work.
3. Put the front bevel of the rotating chain horizontally above the waste edge, hold it tightly to keep the machine from swinging back and forth, left and right, and at the same time force downwards, you can see the waste edge separated from the paper stack.
4. After the end of the waste, the finger releases the elastic switch and the motor stops rotating.
5. When stopping the use of the waste cleaning machine, you must first cut off the air source, and then press the switch to release the residual air to prevent injury. Hang the machine under the designated bracket to avoid improper bumping and damaging the chain.
