Product Details:
|
| Max Package Size: | 2400mm Can Be Customized | Maximum Walking Speed:: | 75M/min |
|---|---|---|---|
| Inner Reel Diameter: | 76mm | Film Barrel Height: | 500mm |
| Maximum Roll Diameter For Films: | 220mm | Battery Charging Time: | 6H |
| Rated Duty Cycle: | 8-10H | Minimum Packing Size: | 1000*1000mm |
| Highlight: | 2400mm Carton Packing Machine,75M/Min Carton Packing Machine,75M/Min Film Wrapping Machine |
||

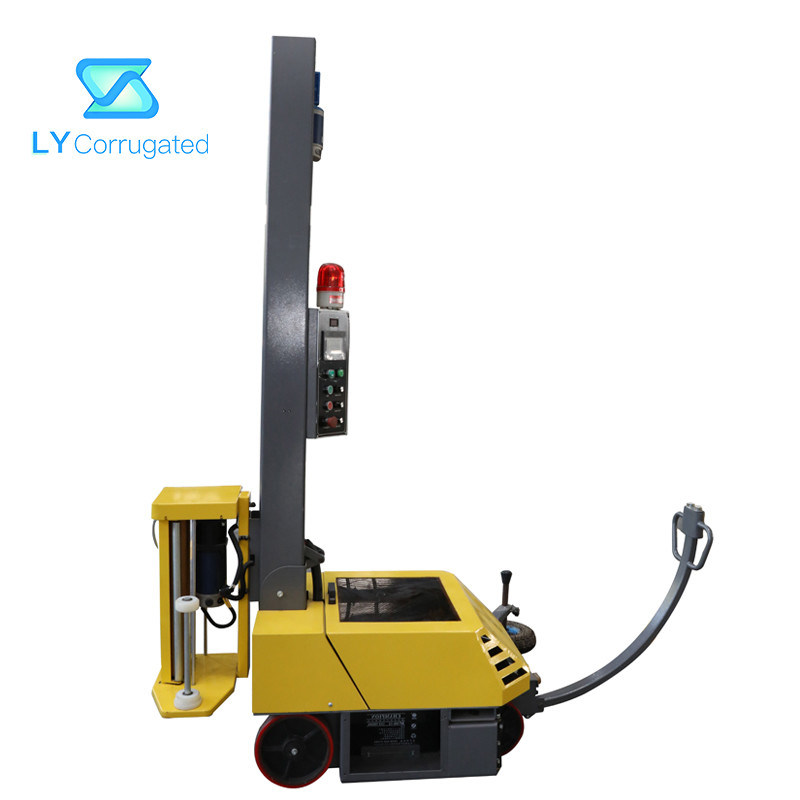

75M/Min Automatic Walking Pre-Tension Winding Operation Stretch Film Wrapping Machines
Product Parameter:
| Power supply for charging | AC220V 50HZ/60HZ 10A |
| Equipped with battery capacity | 100AH(12V) 2PCS |
| Rated duty cycle | 8-10H |
| Battery charging time | 6H |
| Travel motors | Power 0.40KW DC motor equipped with governor |
| Lift motor | Power 0.18KW DC motor equipped with governor |
| Packaging film stretch motor | Power 0.35KW DC motor equipped with governor |
| Minimum packing size | Φ1000mm |
| weight | More than 100KG |
| Maximum walking speed | 75M/min |
| Maximum package size | 2000mm (2400mm can be customized) |
| Minimum pack size | 200mm |
| Maximum roll diameter for films | ￠220mm |
| Inner reel diameter | ￠76mm |
| Film barrel height | 500mm |
| Machine weight | 400KG |
Control panel:
* All functional parameters are visible
* Bottom winding cycles: 0-10 turns
* Top winding cycles: 0-10 turns
* Photoelectric induction cargo height.
* Membrane frame rise and fall speed 0-5m/min
* 4 separate packaging methods are as follows: up and down on a single or under a local reinforcement Manual selection of working mode
Product Features:
1, Automatic walking pre-tension winding operation, can work continuously for 6 hours.
2, The control system is controlled by a special system to control the frequency converter drive motor, control the mechanical transmission mechanism action, to achieve stepless speed regulation, the system is stable and reliable, and the equipment is easy to use and maintain
3, It can automatically detect the height of the outer packaging, the number of equipment packaging circles, etc., and can preset different packaging modes to meet the different packaging requirements of different types of packaging.
4, Film drawing mechanism: mechanical pre-tensioning type (film pre-tensile ratio up to 1:2)
