Product Details:
|
| Application: | Corrugated Line/ Paper Roll To Sheet Cutting Machine | Paper Width: | 1800mm/2200mm /2500mm/ 2800mm |
|---|---|---|---|
| Designed Speed: | 300M/MIN (FLUTE LINDER), 350M/MIN (TOP LINER) | PAPER GRAMMAGE: | 50g/㎡~450g/㎡ |
| TIME FOR RESPOND: | ABOUT 1 SECOND | TYPE OF SPLICING: | BY LAP SPLICING. |
| Highlight: | 2200mm Corrugated Cardboard Production Line,PLC Corrugated Cardboard Production Line,PLC Control Corrugator Splicer |
||

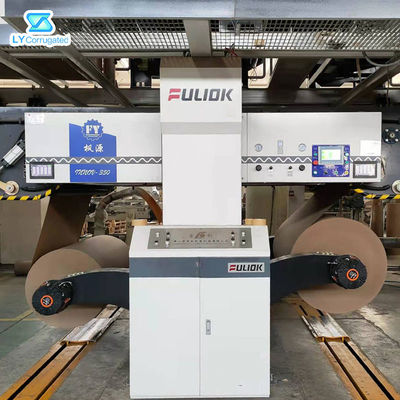

Corrugated Cardboard Production Line 2200mm PLC Control Corrugator Splicer
SPLICING SPEED STANDARD
|
PAPER GRAMMAGE(G/㎡) |
TOP LINER SPEED (M/MIN) |
FLUTE LINER SPEED (M/MIN) |
| 70~90 | 250 | 200 |
| 90~110 | 280 | 220 |
| 110~130 | 300 | 250 |
| >130 | 300 | 250 |
|
NOTE: ABOVE PAPER MENTIONED AS PER PAPER STANDARD FROM LEE&MAN, NINE DRAGON. SUCESSFUL SPLICING RATIO CAN REACH 95% WHEN SPLICING SPEED IS REDUCE ABOUT 10%. |
||
Feature:
1, Machine Frame Made Of High Quality Carbon Steel. With Optimized Design.
2, High Precision Full Servo Motor Control.
3, Double Servo Control With Tension Control Realise The Splicing Speed Match The Paper Weight, Ensure The Success Rate.
4, Paper Storage Roll System. Quick Response By Servo Motor. High Precision In Target At Moving Position.
Application: High Speed Sheeter/ Paper Cutting Machine/ Honeycomb Board Production Line/ Plasterboard Production Line/ Gypsum Board Production Line/ Corrugated Cardboard Production Line/
BEFORE INSTALLATION OF AUTO SPLICER
1, Two operators are required for paper change. High labor intensity.
2, Before installation of auto splicer, paper tension is not constant due to manual paper change. Machine working speed has to be very low. Paper edge is not in alignment. Lots of rejection and wastage.
AFTER INSTALLATION OF AUTO SPLICER
1, Paper preparation work is much easier after installation of auto splicer.
2, After installation of auto splicer, paper changed becomes easier. There is no need to reduce machine working speed. Paper tension is stable and constant. Paper edge is in alignment. No paper wastage.
