Product Details:
|
| Media: | Water | Port Size: | 1/2"~1" |
|---|---|---|---|
| Cast Iron Body Suitable For: | Low & Medium Pressure Service | Working Temperature: | 230°C |
| Working Pressure: | 17 KGS | Connection End: | NPT And BSPT Screwed End |
| Highlight: | Water Media Corrugated Machine Spare Parts,Ductile Iron Corrugated Machine Spare Parts |
||

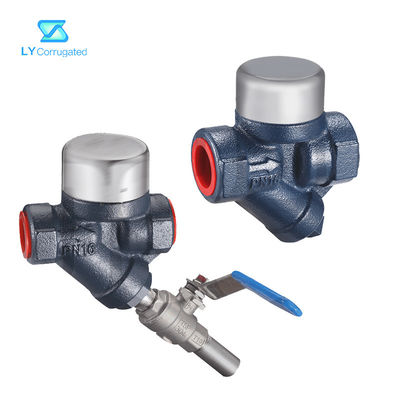

D50 Ductile Iron Thermodynamic Types Mechanical Steam Traps Corrugated Machine Spare Parts
| CONSTRUCTION OF MATERIALS | |
| BODY | DUCTILE IRON FCD 450 |
| INSULATION CAP | S.S.304 |
| DISC CAP | S.S.420 HARDEND |
| DISC | S.S.420 HARDEND |
| DISC SEAT | S.S.420 HARDEND |
| DISC GASKET | COMPRESSED NON-ASBESTOS |
| STRAINER | S.S.304 |
| STRAINER CAP | CARBON STEEL |
| STRAINER GASKET | S.S.304 |
Product Information
1, DSC D50 Thermodynamic Steam Traps With Insulation Cap To Protect Steam Consumption During Cold And Rainy Conditions.
2, Disc And Seat Are Lapped To Meet Light Band Flatness,Seat And Disc Can Be Tightly Sealed During Operation.
3, This Model Is Not For Super Heat Steam Service.
4, Screwed Connection Only.
5, Internal Parts Can Be Replaced.
No. D50 DIMENSIONS(MM). MOP(KG/CM2). WT(KG)
| No. | CONN.SE* | A | B | C | MOP | WT. |
| D50 | 15.20 | 90 | 51 | 56 | 17 | 1.1 |
| 25 | 95 | 56 | 65 | 17 | 1.3 |
