Product Details:
|
| Product: | Air Suspension Spring | Material: | Rubber And Iron |
|---|---|---|---|
| Bearing Range: | 50-2500 Kg | Gas Hole / Air Inlet: | G1/8 |
| Cover Plate Diameter: | 90 Mm | Rubber Bellows Natural Diameter: | 125 Mm |
| Rubber Bellows Natural Height: | 145 Mm | Distance Between Air Inlet And Stud: | 20 Mm |
| Highlight: | 90mm Diameter Corrugated Machine Spare Parts,Double Convoluted Corrugated Machine Spare Parts,Double Convoluted Rubber Air Mattress Spring |
||

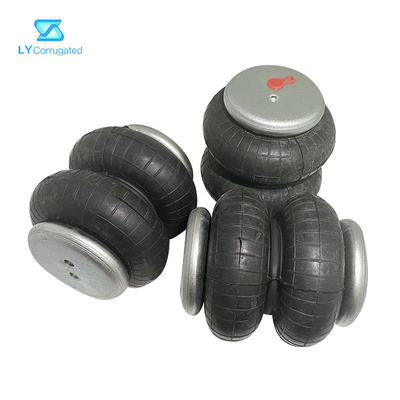

Double Convoluted Rubber Air Mattress Spring For Corrugated Machine Spare Parts
| Product | Air Suspension Spring |
| Material | Rubber And Iron |
| Model | 2B40-10 |
| Bearing range | 50-2500 kg |
| Gas Hole / Air inlet | G1/8 |
| Cover Plate Diameter | 90 mm |
| Rubber Bellows Natural Diameter | 125 mm |
| Rubber Bellows Natural Height | 145 mm |
| Distance Between Air inlet and Stud | 20 mm |
Product Description
The air spring is applied to the shock absorber of industrial equipment, which effectively improves the working efficiency of the equipment and the safety service life of the equipment. Air spring is not like ordinary steel type spring mechanism that have internal operation rod, piston, or sliding sealing device, thereby significantly reducing the cost of using startup or hydraulic cylinder, won more economic benefits for our customers.
Features: low cost and wide specifications; Long service life, no maintenance and lubrication, no internal joystick or piston; No friction effect, soft medium; Bending capacity, side loading capacity, and tight original height.
