Product Details:
|
| Product: | Corrugated Cardboard Production Line | Maximum Mechanical Speed: | 300m/min |
|---|---|---|---|
| Web Size: | 1400-2800mm | Heating Way: | Steam Heating |
| Steam Pressure: | 10 KG/CM2 | BOILER: | 2,3,4 MT/H,according To The Line Speed |

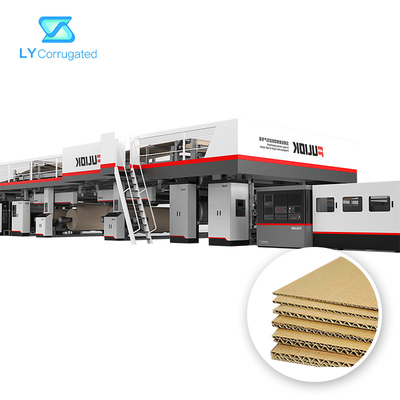

High Speed 2/3/5/7/9 Ply Corrugated Cardboard Production Line
Machine List For 1800mm 5-Layer Production Line
| Item | Equipment | Specifications | Qty |
| 1 | Hydraulic Shaftless Mill Roll Stand | Hydraulic Drive, Double-Station Design, Multi-Point Disc Braking | 5 |
| 2 | Positive Pressure Cassete Type Single Facer | B-Flute Tungsten Cardbide Corrugating Roll Φ380mm, Plc Auto Glue Adjustment Importing Brearing | 2 |
| 3 | Pre-Heating Cylinder |
Φ1028mm, Rotating At Constant Speed; With Auto Adjust Area |
4 |
| 4 | Triplex Pre-Heating Cylinders | Preheater Φ1028mm Rotation At Constant Speed | 1 |
| 5 | Web-Guide & Tension Controller |
1 Set Of Web-Guie 1 Set Of Tension Control |
1 |
| 6 | Duplex Glue Applying Machine | Glue Roller Low Speed Autorotate | 1 |
| 7 | Double Facer |
18 Pcs Of Heating Plates With 4 Sets Of Auto Press (Independent Pneumatic Cylinder Control) With Auto Alignment For Top &Bottom Belt |
1 |
| 8 | Heavy-Duty Drive | Main Motor And Frequency Convertor, Speed Regulated | 1 |
| 9 | Multi-Function Auto Rotary Cutter | N.C.Control | 1 |
| 10 | Computer-Controlle D Slitter Scorer | 5 Blades 8 Scores Servo Motor Control | 1 |
| 11 | Duplex N.C.Control Helical Cross Cutting Machine |
With Double-Drive Servo Motor Control; Outer Rotation Type Four-Motion Model |
1 |
| 12 | Two-Layer Automatic Stacker |
Duplex Model Fully Automatic Stacking Top: Auto Down Stacker Top:Max.Height 1500mmm Bottom: Auto Gantry Stacker; Max.Height 480mmm |
1 |
How to produce a corrugated cardboard?

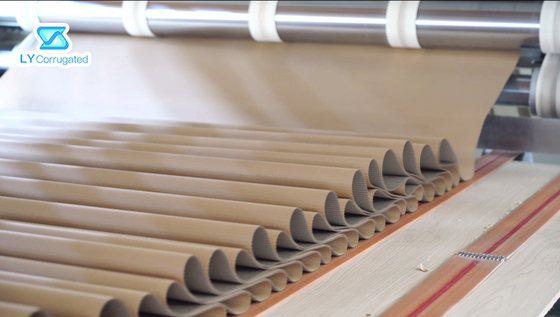

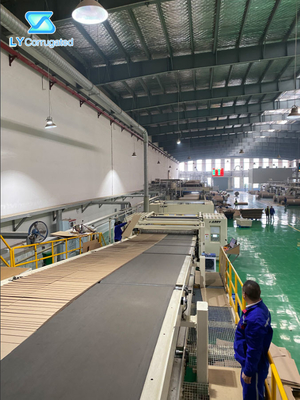

Raw Paper Roll Is Fed To The Roll Stand, After Heated And Moisture Adjusted By The Per-Heater, Raw Paper will Go To The Single Facer, Corrugated By lt, And Gluing Together With Another Raw Paper To Become Single Faced Corrugating Paper, Then Conveyed Through The Over Bridge, Re-Heated By Multi-Pre-Heater, After Glued By Glue Machine, Jointed By The Double Facer, Continuous Corrugating Board Comes Out.
After Slitting And Scorering By Slitter Scorer And Transverse Cutting By Cutoff, Corrugating Board With Different Sizes Are Produced. At Last, These Different Sizes Corrugating Board Will Be Stacked, Calculated And Then Send Out By The Stacker.
