Product Details:
|
| Model NO.: | Rotary Joint | Max. Pressure: | 2.0MPa |
|---|---|---|---|
| Used For: | Single Facer, Double Facer | Max. Temperature: | 250 |
| Media: | Steam, Hot Oil | Transport Package: | Box |
| Highlight: | SGS rotating union joint,2.0MPa steam rotary joint,Corrugated Cardboard Machine steam rotary joint |
||

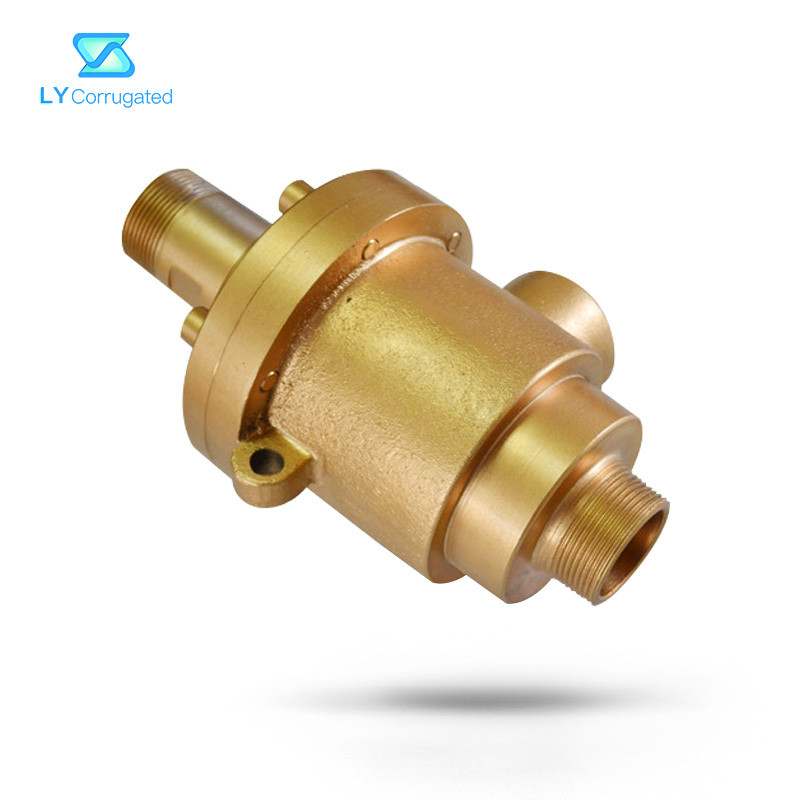

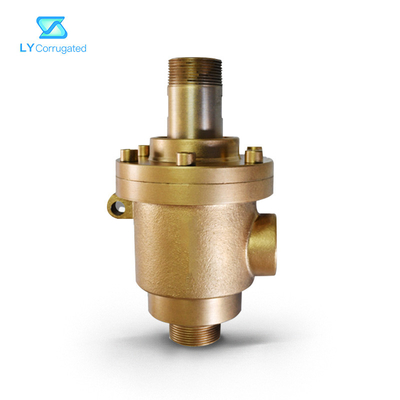

High Temperature Corrugated Cardboard Machine Part Rotary Joint
|
Max. Speed
|
200rpm
|
|
Max. Temperature
|
250 ºC
|
|
Max. Pressure
|
2.0MPa
|
|
Media
|
Steam, Hot Oil
|
|
Material
|
Stainless Steel/Carbon Graphite/Carbon Fiber
|
Rotary Joint
HFR rotary joint is a spherical sealing structure, self-supporting and external compensation design. Relying on the spring to push the shell to move backward along the axial direction to compensate the seal wear and complete the seal isolation between the internal medium and the external air. Therefore, it needs reasonable installation and regular maintenance to ensure the use of products in the equipment.
