Product Details:
|
| Product: | Cardboard Laminator | Max. Working Speed: | 148m/min |
|---|---|---|---|
| Max. Machine Speed: | Lamination Part 16000 Pcs/hr Stacker 12000 Pcs/hr | Lamination Error: | ±0.5mm To ±1.0 Mm |
| Max Paper Size: | 1450x1300mm | Min Paper Size: | 360x380mm |
| Machine Power: | 16.6kw+8.4kw | Machine Size(L×W×H): | 20660×2200×2600mm |
| Highlight: | Deplux Packing carton box machine,TUV packing carton box machine,148m/min flute laminator machine |
||

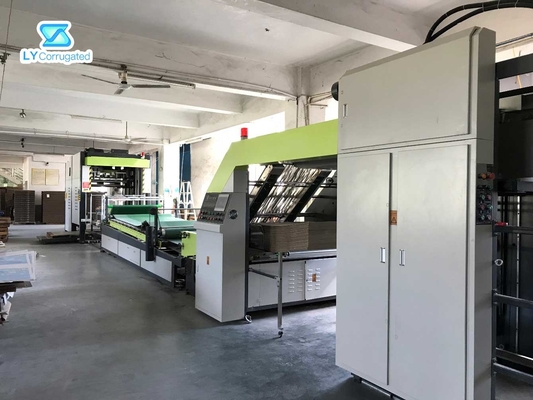

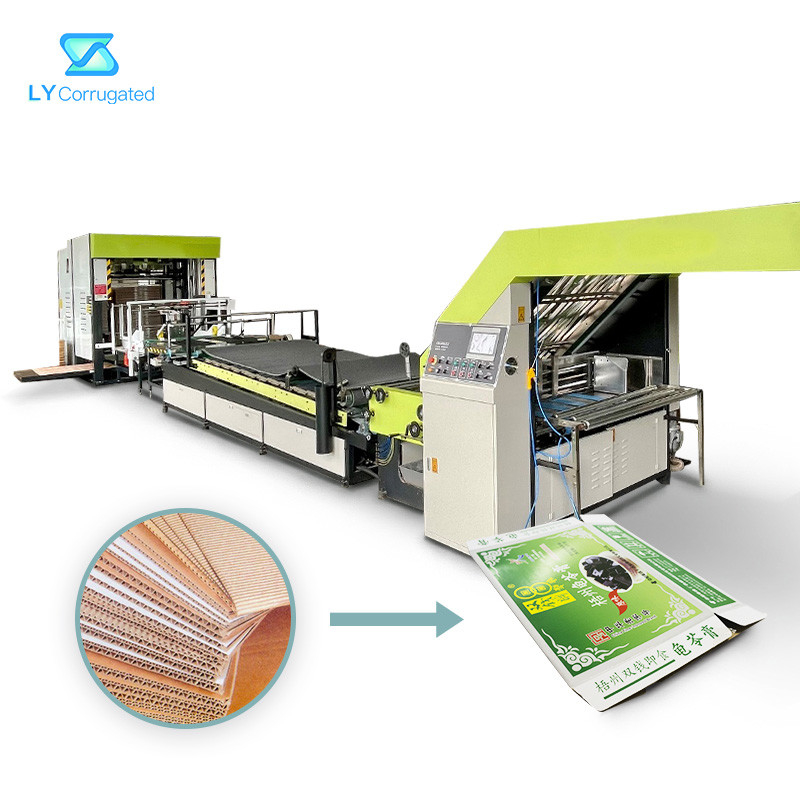

Carton Box Machine Flute Laminator For Corrugated Deplux Grey Cardboard
Machine Function:
From high speed feeding, gluing, laminating, pressing to flip flop stacking and automatic delivery, it completes the whole lamination job by just one time. It fundamentally solve the original tedious and complicated process of flute lamination job, substantially decreases the production’s transition step and labor intensity thus to save companies’ operation cost.
Product Parameter:
| MODEL | 145 |
| Max paper size |
1450x1300mm standard 1450*1450mm optional |
| Min paper size | 360x380mm |
| Top sheet thickness | 128g/㎡-450 g/㎡ |
| Bottom sheet thickness |
0.5mm-10mm Sheet to sheet lamination:250+gsm |
| Max. working speed | 148m/min |
| Max. machine speed |
Lamination part 16000 pcs/hr Stacker 12000 pcs/hr |
| Lamination error | ±0.5mm to ±1.0 mm |
| Machine power | 16.6kw+8.4kw |
| Actual power | 11kw |
| Machine size(L×W×H) | 20660×2200×2600mm |
| Machine weight | 7500kg+4800kg |
