Product Details:
|
| Product Name: | Carton Folder Gluer Machine | Applicable Board Size: | 3/5/7 Layer |
|---|---|---|---|
| Feeding Way: | Hand Feeding | Feature: | Save Labor |
| Transport Package: | Case | ||
| Highlight: | Hand Feeding carton box stitching machine,7 Layer box folding and gluing machine,SGS box folding and gluing machine |
||

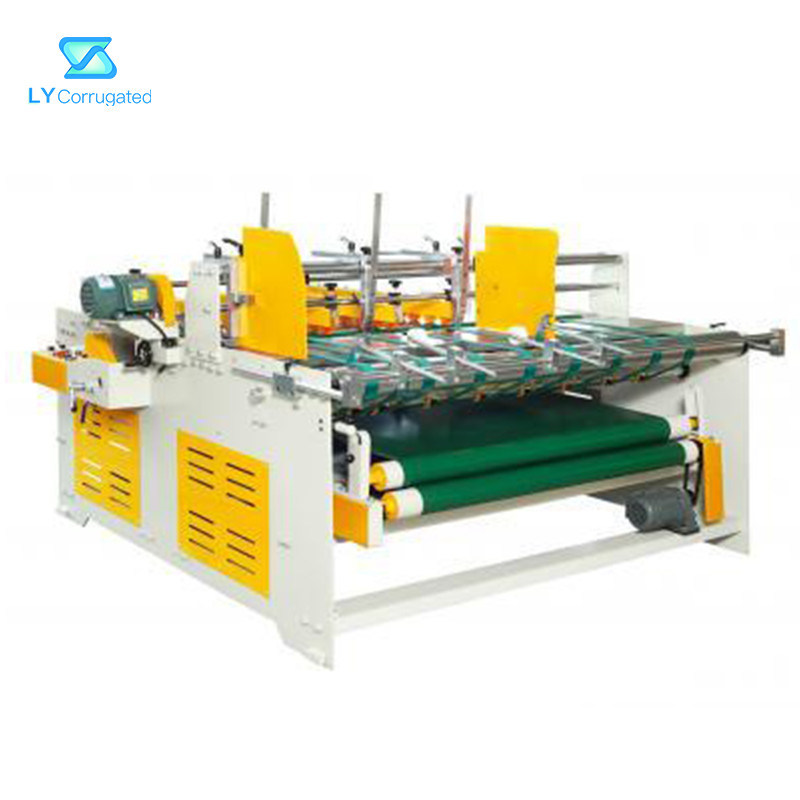

High Speed Taiwan Drive Motor Manual Carton Box Folder Gluer Machine
|
Model
|
XU-BHX2600
|
|
Max. feeding size(LxW)
|
2600x1300mm
|
|
Min. feeding size(LxW)
|
640x300mm
|
|
Feeding height
|
1200mm
|
|
Stacking height
|
800mm
|
|
Working speed
|
45m/min
|
|
Applicable board size
|
3/5/7 layer
|
|
Motor power
|
2.5kw
|
|
Weight
|
2000kg
|
|
Dimension(LxWxH)
|
4800x2000x1800mm
|
automatic folder gluer machine
1. The structure is reasonable, the shape is prominent, the operation is convenient, and the performance is perfect.
2. The electric eye automatic lifting platform controls the stacked paper section to save manpower.
3. Automatic flapping device in the middle of the machine to avoid the phenomenon of "scissors and forks" in cartons.
4. Electric adjustment of the middle side guide plate and the back stacking platform.
5. The combination of roller and conveyor belt enhances the formability of paper.
6. Automatic counters can set the number of finished products (1-20 pieces). Easy to pack.
7. The main drive motor adopts Taiwan speed regulating motor, and the lifting motor, corrugated box and fan are all domestic brands.
